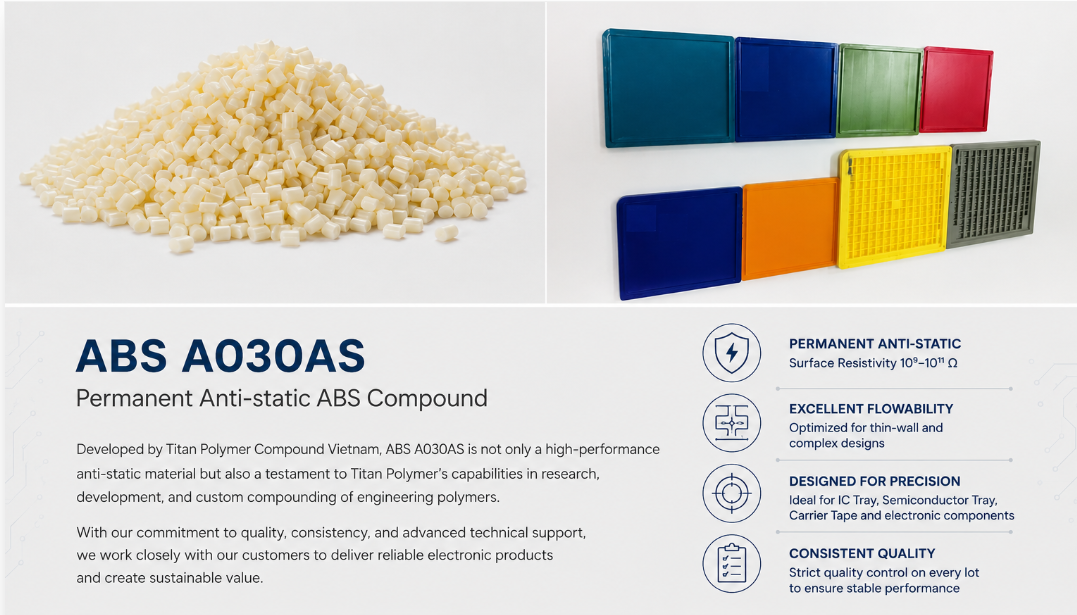

ABS A030AS: HIGH-FLOW PERMANENT ANTISTATIC ABS COMPOUND FOR ELECTRONICS AND SEMICONDUCTOR APPLICATIONS
Developed by Titan Polymer Compounds Vietnam, A030AS is a high-performance permanent antistatic ABS compound designed for demanding electronics and semiconductor applications. By integrating a premium ABS resin system with advanced permanent antistatic technology, Titan Polymer has engineered a material that provides consistent ESD protection, excellent processability, and reliable long-term performance.
The material maintains a surface resistivity in the range of 10⁹–10¹¹ Ω, effectively controlling static charge accumulation and protecting sensitive electronic components from electrostatic discharge (ESD). In addition, its excellent flowability enables efficient mold filling of thin-wall and complex geometries, supporting high-precision manufacturing and consistent product quality.
These characteristics make ABS A030AS an ideal material solution for IC trays, semiconductor handling trays, carrier tapes, electronic packaging, and other precision electronic applications where both ESD protection and processing efficiency are critical. Backed by Titan Polymer’s advanced compounding capabilities, strict quality control systems, and application-driven development approach, A030AS delivers the reliability and performance demanded by today’s electronics manufacturing industry.
KEY TECHNICAL ADVANTAGES :
With surface and volume resistivity values of 1×10⁹ to 1×10¹¹ Ω, compliant with IEC 60093, Titan Polymer’s A030AS delivers reliable and permanent ESD protection. Its antistatic performance remains stable throughout the product lifecycle, independent of environmental humidity and without deterioration over time.
Engineered with an optimized molecular weight distribution to achieve superior flowability, the material is capable of completely filling complex injection molds, multi-cavity molds, and ultra-thin wall structures (such as IC carrier trays) without flash formation or short shots.
This enables:
- Enhanced injection molding process stability.
- Reduced scrap rates and post-molding rework.
- Improved dimensional accuracy and product consistency.
- Higher production efficiency through shorter molding cycles.
- Reliable manufacturing of high-precision electronic components.
In addition to its stable antistatic performance, A030AS offers a well-balanced mechanical property profile, featuring a tensile strength of 38 MPa, flexural strength of 60 MPa, flexural modulus of 1,900 MPa, and notched Charpy impact strength of 20 kJ/m².
Key Mechanical Properties
- Tensile Strength: 38 MPa
- Flexural Strength: 60 MPa
- Flexural Modulus: 1,900 MPa
- Notched Charpy Impact Strength: 20 kJ/m²
As a result, finished components not only provide reliable ESD protection but also maintain the mechanical durability required for long-term use in electronics, semiconductor, and other high-performance industrial applications.
TECHNICAL SPECIFICATIONS ( TITAN POLYMER – ABS A030AS ) :
A030AS – Permanent Antistatic ABS Compound
| Property | Unit | Method | Value |
|---|---|---|---|
| Density | g/cm³ | ISO 1183 | 1.05 |
| Tensile Strength | MPa | ISO 527-1,2 | 38 |
| Tensile Elongation | % | ISO 527-1,2 | >10 |
| Flexural Strength | MPa | ISO 178 | 60 |
| Flexural Modulus | MPa | ISO 178 | 1900 |
| Charpy Impact Strength (Notched) | kJ/m² | ISO 179/1eA | 20 |
| Heat Deflection Temperature (1.8 MPa) | °C | ISO 75-1,2 | 80 |
| Surface Resistivity | Ω | IEC 60093 | 1 × 10⁹ ~ 1 × 10¹¹ |
| Flammability | – | UL 94 | HB |
| Mold Shrinkage | % | 50 × 80 × 3 mm | 0.5 ~ 0.7 |
RECOMMENDED MOLDING CONDITIONS
| Parameter | Unit | Value |
|---|---|---|
| Drying Condition | °C × hrs | 80°C × 3 hrs |
| Melt Temperature | °C | 200 ~ 240 |
| Mold Temperature | °C | 60 ~ 85 |
| Injection Pressure | % | 30 ~ 70 |
| Injection Velocity | % | 30 ~ 60 |
RECOMMENDED PROCESSING CONDITIONS :
To optimize the anti-static matrix and mechanical properties of ABS A030AS, Titan Polymer recommends pre-drying the material at 80°C for 3 hours. The ideal molding window features a Melt Temperature of 200°C – 240°C and a Mold Temperature sustained between 60°C – 85°C.
Developed by Titan Polymer Compound Vietnam, ABS A030AS represents not only outstanding antistatic performance but also Titan Polymer’s strong capabilities in polymer compound innovation, development, and customized manufacturing. Through our unwavering commitment to quality, consistency, and dedicated technical support, we work closely with customers to enable the production of highly reliable electronic components while creating sustainable value for long-term success.
CONTACT TITAN POLYMER TODAY FOR MATERIAL SAMPLES AND TECHNICAL CONSULTATION.
